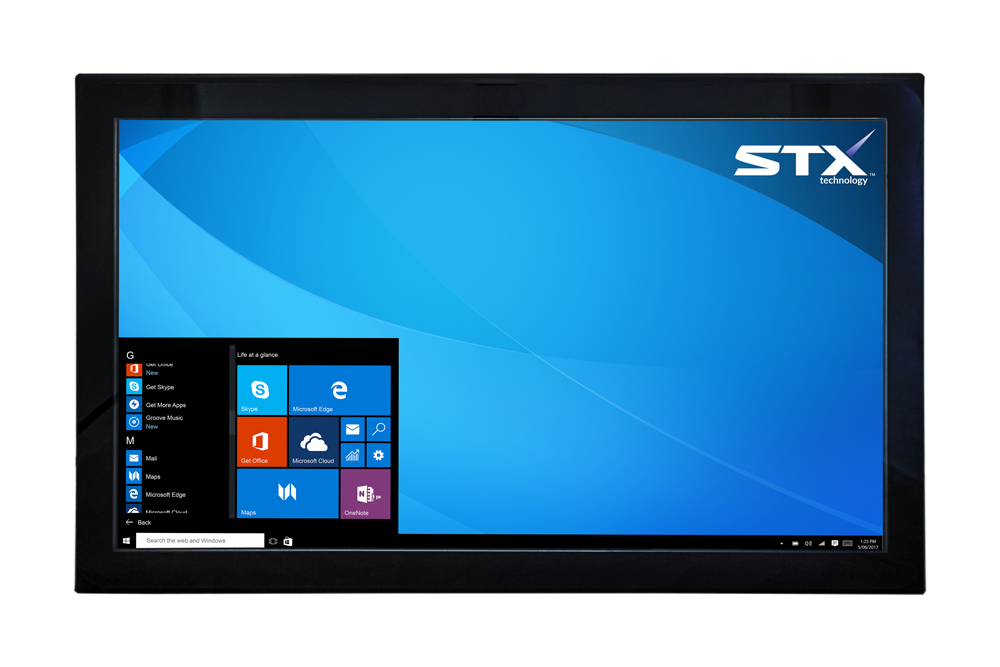

X7318-EX 18.5 Inch Industrial Touch Panel Extender Monitor

X7318-EX 18.5 Inch Industrial Touch Panel Extender Monitor

- 1920 x 1080 (Full HD)
- 18.5 inch Touch Screen
- VGA or DVI or HDMI Video Input
- Runs up to 50M from Computer
- Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
- Tough Aluminium Construction
- Matte Black (Other Colours Available)
- 240VAC or 110VAC (optional DC)
- Warehouse Management
- Production Information Display
- Industrial Information Display
- Staff Information Display
- Designed and Manufactured in New Zealand
- Australian, New Zealand and Global support

Overview
Key Features
Accessories
Order Options
Specifications

The STX X7300-EX Industrial Touch Extender Monitor Range is proven in a range of different applications including Warehouse Management, Production Line Status Display, Inventory Pick Status and other similar applications. The Tough Aluminium enclosure combined with various mounting options, 240VAC, 110VAC or DC power options, and connectivity options create a strong, tough, complete Industrial Touch Computing solution for virtually any application where a touch or non-touch commercial large screen monitor is required.

STX has a wealth of experience in Industrial, Rugged and Harsh Environment computing with products that have proven themselves in the harshest of environments. The quality and integrity of the X7300-EX Industrial Touch Extender Monitor Range ensures sustained reliability and performance.

Designed and Built for Tough Environments
High Quality 18.5 inch Touch Screen
1920 x 1080 (Full HD)
Runs up to 50M from Computer
Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
Tough, Strong Aluminium Enclosure
Matte Black (optional: other colours)
VESA 400mm x 400mm Mounting
Warehouse Management
Production Information Display
Industrial Information Display
Staff Information Display
240VAC or 110VAC Power (optional DC Power)
Designed and Manufactured in New Zealand
Australian, New Zealand and Global support

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Gasket for use with Panel Mount Option
X7300-EX Power Brick
X7300-EX Stainless Steel Floor Stand
X7300-EX Stainless Steel Table Top Stand

X7318-EX-RT

Resistive Touch Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount 400mm x 400mm

X7318-EX-PT

Projective Capacitive Touch (PCAP) Screen
Aluminium Enclosure
Matte Black Finish
VESA Mount 400mm x 400mm

Options:

Panel Mount System
VGA or DVI or HDMI Input
Various Finish Colour Options
DC Power Input

High Brightness 600 nits for bright environments
High Brightness 1000 nits for outdoors

Touch
Touch Type	Resistive or Projective Capacitive (PCAP) Touch Screen

Display
LCD Size	18.5 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	11.5 msec
Brightness (Typical)	350 nits (optional High Brightness)

Inputs
Power Input	240VAC or 110VAC (optional: DC)
Touch	USB or RS-232 options
Video	VGA or HDMI or DVI options

Mechanical & Environmental
Width	465mm
Height	291mm
Display Area Width	409mm
Display Area Height	230mm
Material	Aluminium
Finish	Matte Black (optional: other colours)
Mounting	VESA 400mm x 400mm (optional: Panel Mount)
