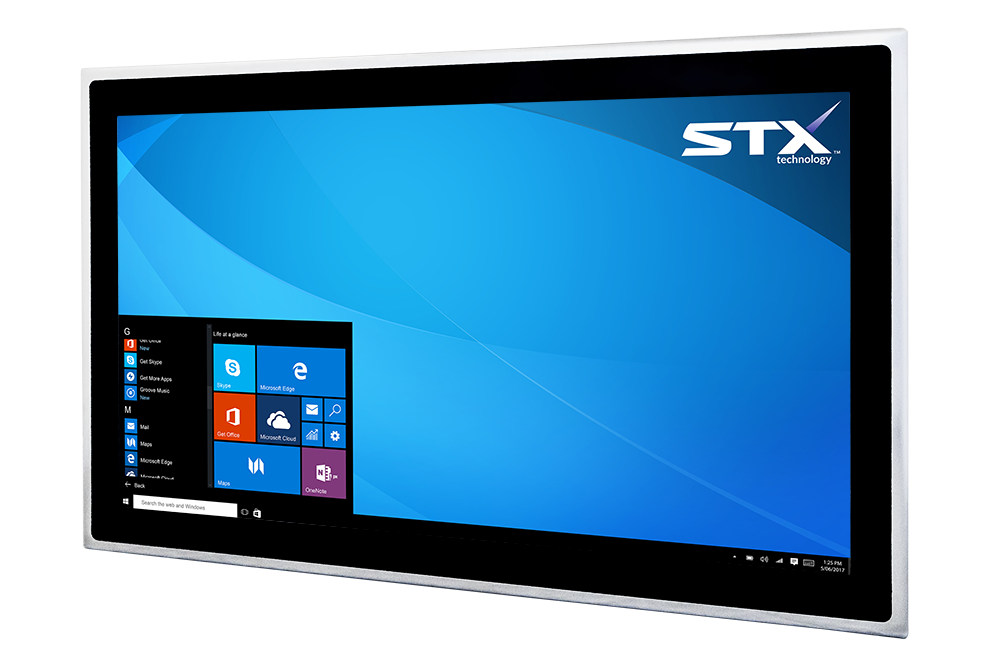

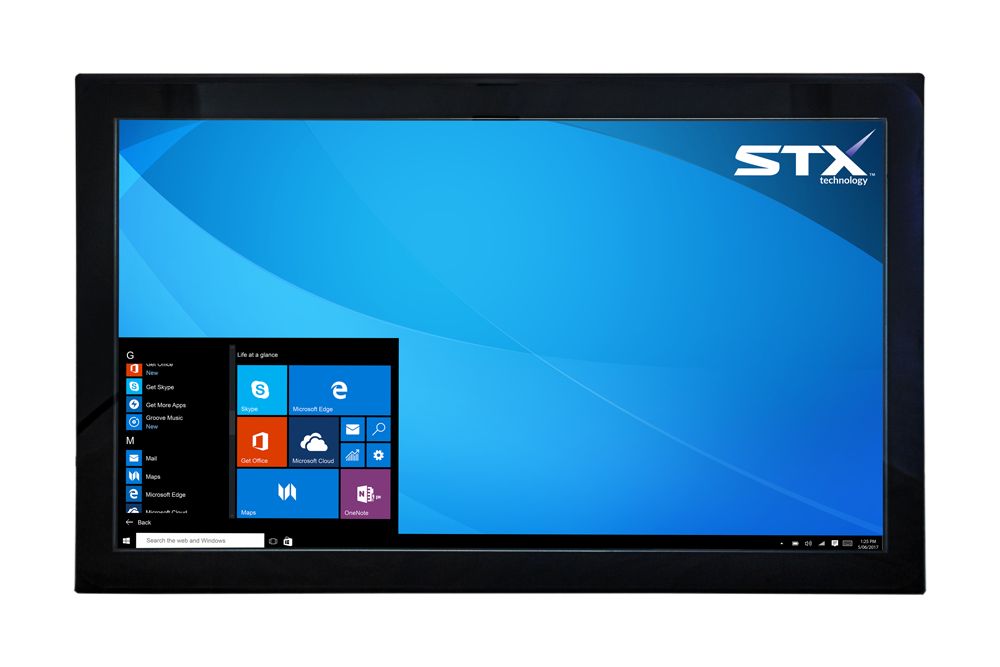

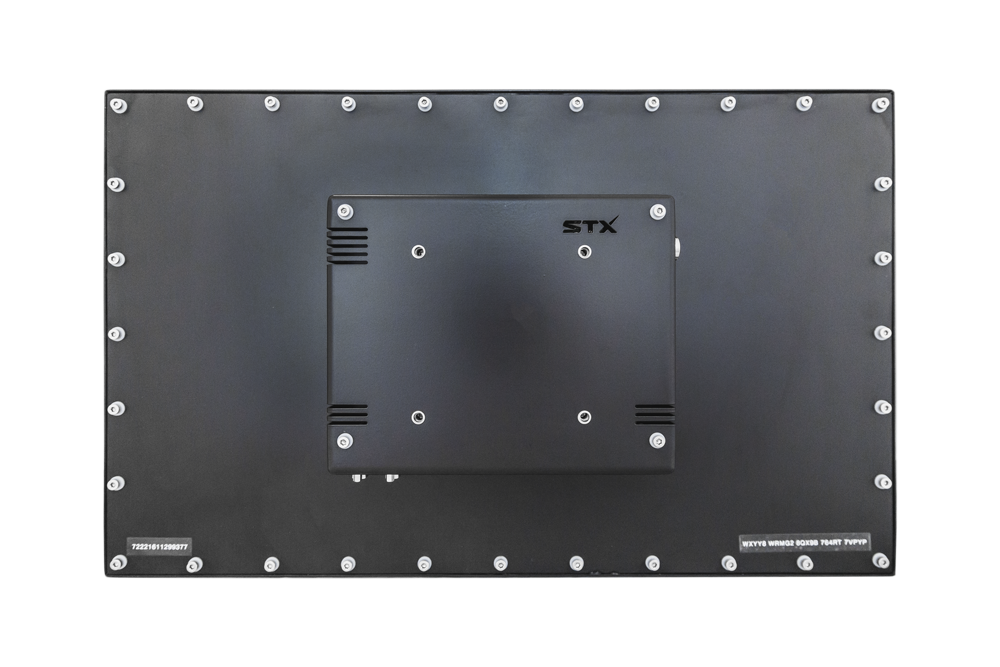

X7322-EX-RT Industrial Panel Monitor - Matte Black Finish
X7322-EX-RT Industrial Panel Monitor - Matte Black Finish X7322-EX-RT Industrial Panel Monitor - Matte Black Finish X7300 Industrial Panel Monitor - Matte Black Finish X7322-EX-PT Industrial Panel Monitor with Projective Capacitive (PCAP) Touch Screen X7322-EX-RT Industrial Panel Monitor with Resistive Touch Screen

X7322-EX 21.5 inch Industrial Touch Panel Extender Monitor

X7322-EX 21.5 inch Industrial Touch Panel Extender Monitor
  • - 1920 x 1080 (Full HD)
  • - 21.5 inch Touch Screen (industrial alternative to consumer grade 22 inch screen)
  • - VGA or DVI or HDMI Video Input
  • - Runs up to 50M from Computer
  • - Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
  • - Tough Aluminium Construction
  • - Matte Black (Other Colours Available)
  • - 240VAC or 110VAC (optional DC)
  • - Warehouse Management
  • - Production Information Display
  • - Industrial Information Display
  • - Staff Information Display
  • - Designed and Manufactured in New Zealand
  • - Australian, New Zealand and Global support

Designed specifically for industrial use

Industrial 10VDC~30VDC power input combined with high-quality touch screen and fully sealed stainless-steel enclosure.

Proven in extreme conditions

Strong enclosure, fanless construction and IP67 / IP68 connectors to withstand corrosion, water and dust.

Easy mounting options

Standard mounting for the X7200 is VESA 100. Options include Panel Mount, VESA 75x75 and Side Stud Mounting.





IP Rated industrial connectors

IP67 / IP68 industrial connectors are a reliable solution for environments where humidity, water, dust, dirt, corrosion or debris are involved.





Used across industries

Warehousing, Food Processing, Dairy, Automation & control, Mining, Transportation, Construction, Agriculture, Horticulture, Forestry, Marine and others.





Applications

Can be used for a number of industrial applications including Information display, Safety, CCTV, Data collection, Loading Applications, barcode scanning and others

Contact us today  to find out more about the X7322 EX Industrial Touch Panel Extender Monitor and other products.

  • Designed and Built for Tough Environments
  • High Quality 21.5 inch Touch Screen (industrial alternative to consumer grade 22 inch screen)
  • 1920 x 1080 (Full HD)
  • Runs up to 50M from Computer
  • Optional Slave Screen or Second Screen for X7300 or X8300 Computer Ranges
  • Tough, Strong Aluminium Enclosure
  • Matte Black (optional: other colours)
  • VESA 400mm x 400mm Mounting
  • Warehouse Management
  • Production Information Display
  • Industrial Information Display
  • Staff Information Display
  • 240VAC or 110VAC Power (optional DC Power)
  • Designed and Manufactured in New Zealand
  • Australian, New Zealand and Global support



X7300 Extender Monitor Range



X7322-EX-RT

  • Resistive Touch Screen
  • Aluminium Enclosure
  • Matte Black Finish
  • VESA Mount 400mm x 400mm



X3200 Monitor Range



X7322-EX-PT

  • Projective Capacitive Touch (PCAP) Screen
  • Aluminium Enclosure
  • Matte Black Finish
  • VESA Mount 400mm x 400mm



X7200 Monitor Range



Link Here for Industrial Panel PC Range




Other upgrades and mounting options




Materials and Finishes:

  • 316 Stainless Steel
  • Stainless Highly Polished Finish
  • Stainless Brushed Finish
  • Stainless Matte Black Finish
  • Aluminium & Powder Coated Finish



Mounting:

  • Panel Mount System
  • VESA Mount 75mm x 75mm



Video:

  • VIGA, HDMI or DVI



Power:

  • 110~240VAC Power brick



High Brightness Displays:

  • High Brightness 600 nits display for bright environments
  • High Brightness 1000 nits display for outdoors

Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

Touch
Touch Type Resistive or Projective Capacitive (PCAP) Touch Screen

Display
LCD Size 21.5 inch, 16:9
Colours 16.2 million
Resolution 1920 x 1080
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 500:1
Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time 11.5 msec
Brightness (Typical) 350 nits (optional High Brightness)

Inputs
Power Input 240VAC or 110VAC (optional: DC)
Touch USB or RS-232 options
Video VGA or HDMI or DVI options

Mechanical & Environmental
Width 539mm
Height 330mm
Display Area Width 477mm
Display Area Height 268mm
Material Aluminium
Finish Matte Black (optional: other colours)
Mounting VESA 400mm x 400mm (optional: Panel Mount)
