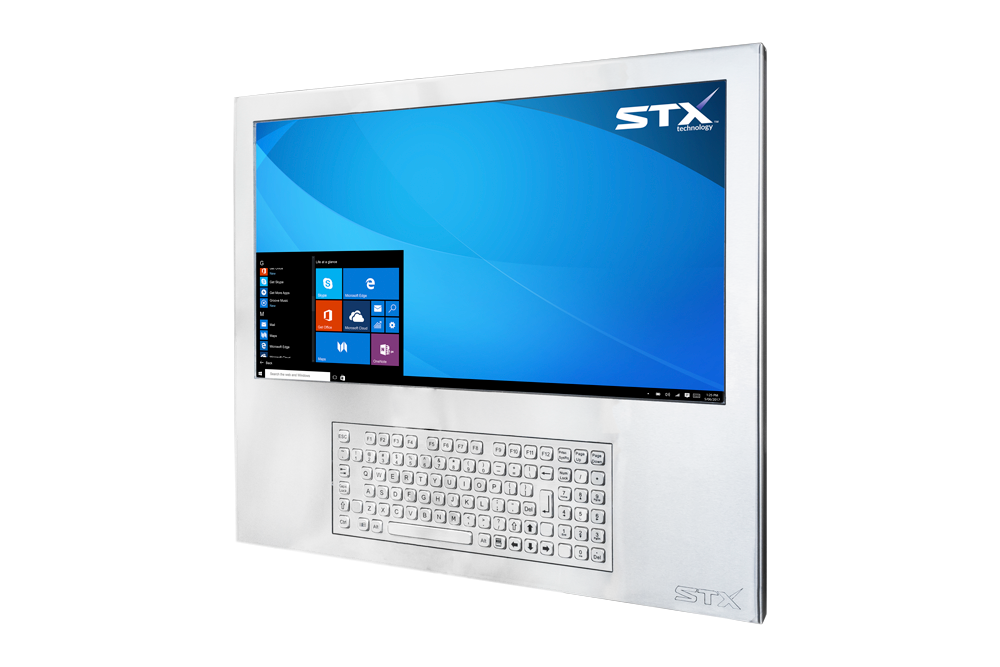

X7222-KB Touch Monitor with built-in keyboard

Built-in keyboard compliant with IP65 rating

21.5 Inch Full HD Touch Screen

1920 x 1080 (Full HD)

Fanless Design

304 Stainless Steel Enclosure

12VDC or Wide Power - 10~30VDC

Multiple Video Inputs: VGA, HDMI & DVI

Overview
Key Features
Order Options
Accessories
Specifications
Similar Products

Designed specifically for industrial use

Industrial 10VDC~30VDC power input
High quality touch screen
Fully sealed stainless steel enclosure.

Proven in extreme conditions

Strong enclosure
Fanless construction
IP67 / IP68 connectors

Easy mounting options

VESA

ports

IP Rated industrial connectors

VGA
HDMI
DVI

in built keyboard touch screen

Used across industries

Warehousing
Food Processing
Dairy
Automation & control
Mining

Transportation
Construction
Agriculture
Horticulture
Forestry
Marine

applications

Applications

Information display
Safety
CCTV
Data collection
Loading Applications
Barcode scanning

Contact the STX Team today to find out more about the X7222-KB Touch Monitor with built-in keyboard and other products.

Keyboard compliant with IP65 rating
Engineered for harsh environments
High Quality 22 inch Resistive or PCAP Touch screen
1920 x 1080 (Full HD)
Tough, Strong Stainless Steel Enclosure
Fanless design, doesn’t suck in dust and other particles
Standard Brushed, Highly Polished or Matte Black finish
VESA Mounting
12VDC or Wide Power - 10~30VDC
Global support: Australia, UK, USA, New Zealand and other countries

Resistive

X7200 Monitor Range

Projective Capacitive

X7222-KB-RT

Resistive Touch Screen
Stainless Brushed Finish
304 Stainless Steel
VESA Mount

X7222-KB-PT

Projective Capacitive Touch (PCAP) Screen
Stainless Brushed Finish
304 Stainless Steel
VESA Mount

Options

High Brightness Displays:

High Brightness 600 nits display for bright environments
High Brightness 1000 nits display for outdoors

Materials and Finishes:

316 Stainless Steel
Stainless Highly Polished Finish
Stainless Brushed Finish
Stainless Matte Black Finish
Aluminium & Powder Coated Finish

Mounting:

Panel Mount System

Power:

110~240VAC Power brick

X7200 Monitor Range

Link Here to Industrial Panel PC Range

STX Technology has a wide range of accessories designed specifically for the Industrial Monitors. It includes a variety of mounting options (stands, brackets), complete range of IP67 industrial connectors, stainless steel printer box and other accessories

Gasket for use with Panel Mount Option
X7200 Power Brick 60W IEC to 12VDC 2.1 x 5.5 - X4200-PB60DC
X7200-KB Stainless Steel Floor Stand
X7200-KB Stainless Steel Adjustable Mount Kit

Display
LCD Size	21.5 Inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	350 nits (optional High Brightness 600 nits or 1000 nits)

Inputs
Touch	USB or RS-232
Video	VGA, HDMI or DVI
Power Input	12VDC or 10~30VDC (wider and other input voltages available)

Mechanical & Environmental
Material	304 Stainless Steel (optional 316 Stainless Steel)
Finish	Brushed (optional Highly Polished or Matte Black)
Keyboard	Built-in stainless steel IP65 keyboard (optional IP67 keyboard)
Mounting	VESA 100 x 100 (optional Panel Mount or VESA 75x75 or Side Stud Mounting)
Temperature Control	Fanless

X7300 Monitor Range	X7200-KB Panel PC Range	X7200 Panel PC Range

Aluminium Enclosure Low weight Fanless Design	Stainless Steel Enclosure Built-in keyboard (IP65 rated) All-in-one computer	Stainless Steel Enclosure All-in-one computer 2.0GHz Intel® Quad Core CPU
