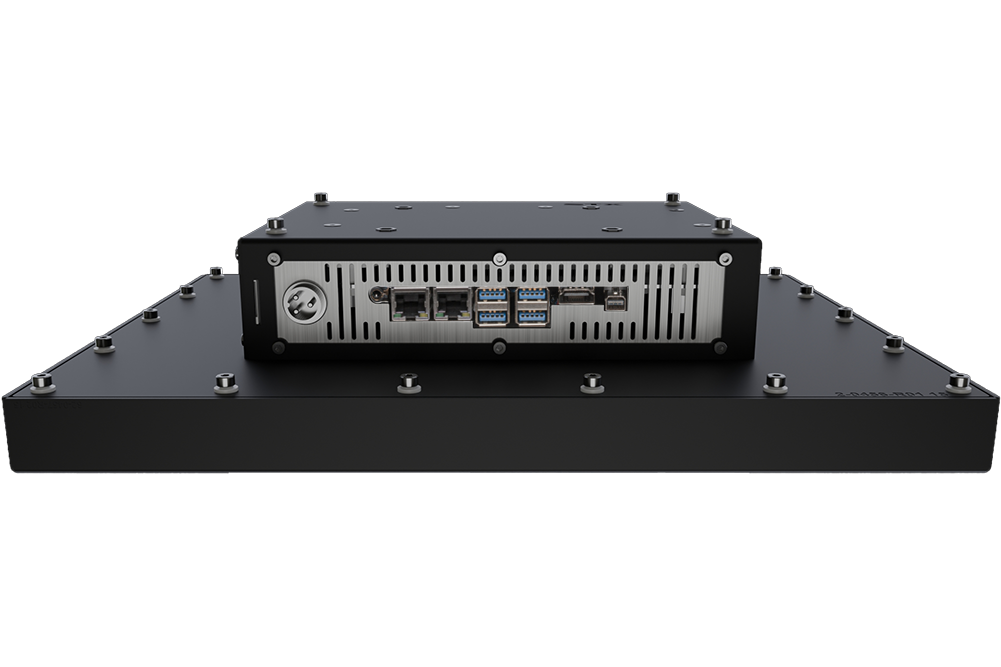

X7316 15.6 Inch Fanless Industrial Touch Panel PC

  • 15.6 Inch Touch Screen
  • 1920 x 1080 (Full HD)
  • 16:9 widescreen display
  • Multiple CPU options
  • Tough Aluminium Construction
  • Fanless Design
  • IP67 / IP68 industrial connectors
  • 10VDC~30VDC Power Input
  • 3rd Generation Product
  • The STX X7300 Industrial Computer Range is proven in a range of different applications including Warehouse Management, Production Line Status Display, Inventory Pick Status and other similar applications. The Tough Aluminium enclosure combined with 2.4GHz Intel® Quad Core CPU, high quality touch screen, various mounting options, wide 10~30VDC power input (110VAC or 240VAC with power brick), connectivity options and many computer port options create a strong, tough, complete Touch Computing solution for virtually any Industrial application.

    STX has a wealth of experience in Industrial, Rugged and Harsh Environment computing with products that have proven themselves in the harshest of environments. The quality and integrity of the X7300 Industrial Panel PC Range ensures sustained reliability and performance.

    • Designed and Built for Tough Environments
    • High Quality 15.6 inch Touch Screen
    • 1920 x 1080 (Full HD)
    • HDMI Output for Second Screen for (X4300 Monitor Range)
    • Multiple CPU options
    • Tough, Strong Aluminium Enclosure
    • Matte Black (optional: other colours)
    • VESA 400mm x 400mm Mounting
    • Warehouse Management
    • Production Information Display
    • Industrial Information Display
    • Staff Information Display
    • Wide 10~30VDC Power Input
    • Global support



    Standard

    Configurations

    Performance

    Configurations



    Industrial Panel PC



     X7316-C4-RT

    • Resistive Touch Screen
    • 350 nits Display
    • 2.4GHz Intel® Quad Core CPU
    • 4GB DDR3 RAM
    • 120GB SSD
    • Aluminium Enclosure
    • VESA Mount 100mm x 100mm
    • 10~30VDC power input



    X7316-C5-RT

    • Resistive Touch Screen
    • 350 nits Display
    • 2.8GHz Intel® Core™ i5 CPU - i5-6200U
    • 4GB DDR4 RAM
    • 120GB SSD
    • Aluminium Enclosure
    • VESA Mount 100mm x 100mm
    • 10~30VDC power input



    Industrial Panel PC - PCAP



    X7316-C4-PT

    • Projective Capacitive Touch Screen
    • 350 nits Display
    • 2.4GHz Intel® Quad Core CPU
    • 4GB DDR3 RAM
    • 120GB SSD
    • Aluminium Enclosure
    • VESA Mount 100mm x 100mm
    • 10~30VDC power input



    X7316-C5-PT

    • Projective Capacitive Touch Screen
    • 350 nits Display
    • 2.8GHz Intel® Core™ i5 CPU - i5-6200U
    • 4GB DDR4 RAM
    • 120GB SSD
    • Aluminium Enclosure
    • VESA Mount 100mm x 100mm
    • 10~30VDC power input




    RAM Upgrade:

    • 8GB DDR3



    RAM Upgrade:

    • 8GB, 16GB, 32GB DDR4






    Other upgrades and mounting options





    Hardware:

    • 256GB or larger SSD
    • 3 Ethernet 1000 Mbp Ports
    • 3G/4G
    • GPS



    Materials and Finishes:

    • Matte Black Finish (other colours available)



    Mounting:

    • Panel Mount System
    • VESA Mount 75mm x 75mm



    Power:

    • 110~240VAC Power brick



    High Brightness Displays:

    • High Brightness 600 nits display for bright environments
    • High Brightness 1000 nits display for outdoors

    Accessories include wall mounting brackets, complete range of IP67 industrial connectors, IP68 keyboards and keyboard mounting accessories

    Display
    LCD Size 15.6 Inch, 16:9
    Colours 16.2 million
    Resolution 1920 x 1080
    Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
    Contrast Ratio 500:1
    Viewing Angle Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
    Response Time 14.5 msec
    Brightness (Typical) 350 nits (optional High Brightness 600 nits or 1000 nits)

    System
    CPU 2.4GHz Intel® Quad Core CPU (optional 2.8GHz Intel® Core™ i5 CPU)
    System Memory 4 GB DDR3 (optional 8GB DDR3 or 8GB, 16GB, 32GB DDR4 with i5 CPU)
    Hard Drive 120GB SSD (optional 256GB or larger SSD)
    Operating systems Windows 10 (optional Windows 7, Windows 8.1, Windows XP, Linux, Android)
    Wi-Fi Wi-Fi and Bluetooth

    Rear I/O
    Serial Port 2 RS-232 (optional Up to 6)
    Ethernet 2 Ethernet 1000 Mbp (standard), 3 Ethernet (optional)
    USB 1 USB 2.0 1 USB 3.0 (optional up to 4 USB 2.0)
    Video Out (Slave Screen - X4300 Monitor Range) VGA & HDMI

    Mechanical & Environmental
    Width 411mm
    Height 262mm
    Display Area Width 344mm
    Display Area Height 194mm
    Material Aluminium
    Finish Matte Black (optional: other colours)
    Mounting VESA 400mm x 400mm (optional: Panel Mount)
    Power Input 10~30VDC (optional 110~240VAC Power brick, other voltages)
    Temperature Control Fanless

    Options
    3G Optional 3G or 4G and GPS
