Industrial Computer for Extreme Environments (production, manufacturing, forestry, agriculture)
Industrial Computer for Extreme Environments (production, manufacturing, forestry, agriculture) Industrial Computer for Extreme Environments (production, manufacturing, forestry, agriculture) Industrial Computer for Extreme Environments (production, manufacturing, forestry, agriculture) STX Technology X9000 Harsh Environment Computer - IP67 Connectors STX Technology X9000 Harsh Environment Computer - IP67 Connectors X9000 Industrial Rugged PC - Screen Protector

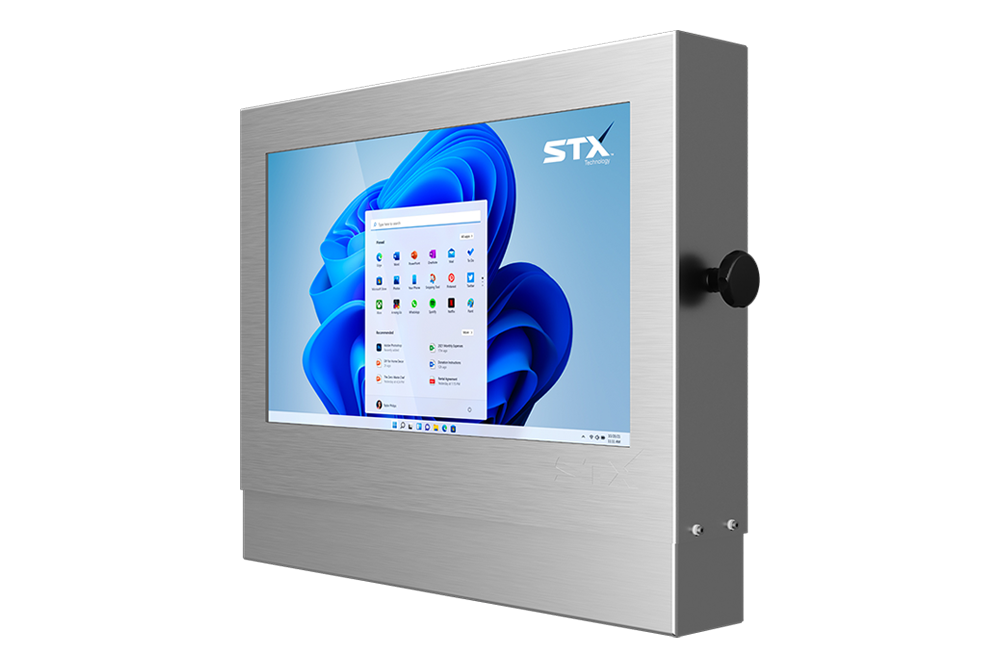

X9018 18.5 inch Stainless Steel Touch Computer

  • 18.5 inch Touch Screen
  • Resolution 1920x1080 16:9
  • Intel® Generation 11 CPU | ARM RK3588S
  • TPM 2.0
  • Windows | Linux | Android | Monitor
  • Engineered for Tough Washdown Environments
  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • Shielded IP67 / IP68 industrial connectors
  • 10~30VDC power input
  • 5th Generation Product (G5)

designed for industrial use

 proven in extreme conditions

mounting

Engineered Tough for Extreme Environments

  • 110VAC~240VAC or 10VDC~30VDC Power Input
  • Responsive Touch Screen
  • Rugged Stainless Steel Enclosure

Proven in Extreme Conditions

  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • Fanless Construction
  • IP67 / IP68 Connectors

Easy Mounting Options

  • Standard Side Stud Mounting
  • Optional VESA Mount
  • Optional Stands

ip rated industrial connectors

 industrial use

applications

Waterproof Connectors

  • IP67 / IP68 Industrial Connectors
  • Power / USB / Ethernet
  • Connector Protection for Tough Wash Down
  • Harsh Environment WiFi Antenna

Used Across Industries

  • Food Processing
  • Meat Production
  • Fish Production
  • Pharmaceutical
  • Chemical
  • Automation & Control
  • Agriculture
  • Horticulture
  • Dairy
  • Mining

Applications

  • Weigh Scale
  • Barcode Scanning
  • Data collection
  • Grading
  • Loading Applications
  • Dispatch

The X9000 Rugged Touch Computer is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

  • Engineered Tough for Extremely Harsh Environments
  • Resistive or PCAP Touch Screen
  • Intel® Generation 11 CPU
  • Celeron® | Core™ i5 | Core™ i7 | ARM RK3588S CPU Options
  • 304 or 316 Brushed Stainless Steel finish
  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • Proven reliability in Washdown Environments
  • 110VAC~240VAC or optional 10~30VDC Power Input
  • IP67 / IP68 industrial connectors
  • Industrial SSD Hard Drive
  • Network Boot (PXE Boot)
  • Comprehensive Support
 STX Technology Harsh Environment Computer Touch Screen


18.5 inch Resistive Touch

STX Technology X9000 Stainless Steel Resistive Touch Panel PC
Touch Panel PC
X9018-C4-RT
Intel® Celeron® 6305U
8GB DDR4 RAM
120GB SSD
Windows | Linux

X9018-C5-RT
Intel® Core™ i5-1135G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X9018-C7-RT
Intel® Core™ i7-1165G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X9018-A3-RT
ARM RK3588S
8GB DDR4 RAM
128GB EMMC
Android 13

Touch Panel Monitor
X9018-M-RT
HDMI | VGA | DP
USB Touch

X9018-M-RT-KVM
HDMI | DP & USB Touch
Up to 100M over CAT6
















Standard Features

  • 304 Brushed Stainless Steel
  • M10 Side Bolt Mounting with Starnuts
  • 10~30VDC power input
  • Network Boot (PXE Boot)






Optional Features
Display Brightness:
  • High Brightness 600nits
  • High Brightness 1000nits
Power:
  • 240VAC
  • 110VAC
  • Other voltages
 System:
  • 16GB | 24GB | 40GB DDR4 RAM
  • 256GB | 512GB | 1TB Industrial SSD
  • Up to 4 Ethernet 1000Mbp
  • Up to 8 RS232 | RS422 | RS485
  • CAN bus
  • High Speed Serial (to 3M Baud)
  • WiFi Dual Band
  • Bluetooth
  • 3G / 4G or 4G / 5G
 Material:
  • 304 Stainless Steel
  • 316 Stainless Steel
Mounting:
  • M10 Side Bolt Mounting with Starnuts
  • VESA 100
 Finish:
  • Stainless Steel Brushed
  • Stainless Steel Highly Polished
  • Stainless Steel Electro Polished
  • Matte Black
Display Protector:
  • Sacrificial Touch Membrane





STX Technology X9018 Stainless Steel Resistive Touch Monitor

Click Here to see the X9000 Harsh Environment Monitor Range




Touch
Touch Type Resistive Touch



Display
LCD Size 18.5 inch, 16:9
Colours 16.7 million
Resolution 1920 x 1080 Full HD
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 1000:1
Viewing Angle Horizontal: ±89° , Vertical: 89°
Response Time 14.5 msec
Brightness (Typical) 450 nits (optional 600 or 1000 nits)



System
CPU Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
System Memory 8 GB (optional 16GB | 24GB | 40GB)
Hard Drive 128GB Industrial SSD (optional 256GB | 512GB)
Operating systems Windows 10 | Windows 11 | Linux | Android 13
Boot Options Network Boot (PXE Boot)



Ports
USB 1 x USB
Serial 1 x RS-232 (Optional up to 8 x RS232)
RS485 or RS422 (Optional)
CAN Bus (Optional)
High Speed Serial RS232/RS422/RS485 (to 3M Baud) (Optional)
Connectivity 1 x Ethernet 1000Mbps (Optional up to 3 Ethernet 1000Mbps)
WiFi Dual Band (Optional)
Bluetooth (Optional)
3G / 4G LTE or 4G / 5G (Optional)



Mechanical & Environmental
Material 304 Stainless Steel (optional 316 Stainless Steel)
Finish Brushed (optional Highly Polished)
Mounting M10 Side Mounts (optional VESA, other)
Connectors IP67 / IP68
Power Input 10VDC~30VDC (optional 110~240VAC)
Display Protector Tough Sacrificial Touch Membrane (Optional)



Accessories
Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options Various mounting kits available including top side and wall mounting



Touch
Touch Type Resistive Touch



Display
LCD Size 18.5 inch, 16:9
Colours 16.7 million
Resolution 1920 x 1080 Full HD
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 1000:1
Viewing Angle Horizontal: ±89° , Vertical: 89°
Response Time 14.5 msec
Brightness (Typical) 450 nits (optional 600 or 1000 nits)



Monitor Option
Video Input HDMI / DVI / VGA / Display Port options
Touch USB Touch (optional RS232 Serial)



KVM Monitor Option
Video Input HDMI / VGA / Display Port options
Touch USB Touch (optional RS232 Serial)
Single CAT6 Cable Video & Touch up to 100M



Mechanical & Environmental
Material 304 Stainless Steel (optional 316 Stainless Steel)
Finish Brushed (optional Highly Polished)
Mounting M10 Side Mounts (optional VESA, other)
Connectors IP67 / IP68
Power Input 10VDC~30VDC (optional 110~240VAC)
Display Protector Tough Sacrificial Touch Membrane (Optional)



Accessories
Keyboard Optional IP68 Keyboard and Keyboard Tray Kit
Mounting Options Various mounting kits available including top side and wall mounting



Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.



STX Technology Stainless Steel Harsh Environment Printer Box
STX Technology Stainless Steel Harsh Environment Printer Box
STX Technology Stainless Steel Top Mount Bracket
X9000 Wall Mount Bracket VESA 100
STX Technology Stainless Steel Floor Stand
STX Technology Stainless Steel Floor Stand
IP68 Water resistant Silicone Keyboard
IP68 Water resistant Silicone Keyboard





Click Here to find all of our Accessories

Click Here to find all of our Accessories

X7000 Stainless Steel Touch Computers



X7000 Stainless Steel Touch Monitors



X7500 Stainless Steel Panel PC Range


X7000 Stainless Steel Touch Computer Range X7000 Harsh Environment Touch Monitor Range  X7500 Stainless Steel Panel PC Range
  • Stainless All-In-One Computer
  • IP67 / IP68 / NEMA 6 Connectors
  • Fanless Design
  • Stainless Touch Monitor
  • IP67 / IP68 / NEMA 6 Connectors
  • HDMI / VGA / DVI / DP Options
  • Stainless All-In-One PC
  • IP67 / IP68 / NEMA 6 Connectors
  • VESA Mount
